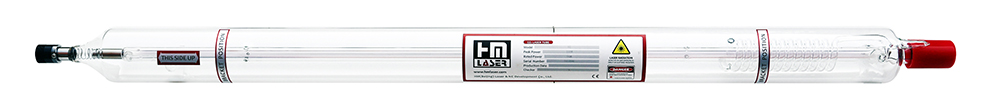

H Series Laser Tube

Feature：
● Technology: Glass Tube-to-Metal Head Hard Seals, reduce gas leakage, increase stability.
● Beam Quality: Japanese CNC machining center, Mode Check analyzer, beam quality very close to TEM00 mode.
● Key components: cavity optical lenses manufactured by IIVI; German Schott discharge tube; Self-developed catalyst.
● Quality Control: Advanced production management, strict process control and final inspection, to achieve the quality of the laser tube consistency.
● Customize: we can customize different laser tube for special application.

Product Feature

Beijing HM Laser Co., Ltd.

Practical, Sincere, Reliable, Creative, Efficiency

Technology

Glass Tube-to-Metal Head Hard Seals, reduce gas leakage, increase stability.

Beam Quality

Japanese CNC machining center, Ophir Mode Check analyzer, makes sure beam quality very close to TEM00 mode.

Critical Parts

Self-developed cavity optics and made by IIVI; Germany Schott discharge tube; Self-developed catalyst.

Quality Control

Advance production management, strict process control and final inspection, makes sure quality consistency for 100000pcs laser tube a year.

Customize

We can customize different laser tube for special application .

技术先进

1、Glass Tube-to-Metal Head Hard Seals, reduce gas leakage, increase stability.

光束质量

2、Japanese CNC machining center, Ophir Mode Check analyzer, makes sure beam quality very close to TEM00 mode.

技术

3、Self-developed cavity optics and made by IIVI; Germany Schott discharge tube; Self-developed catalyst.

品控

4、Advance production management, strict process control and final inspection, makes sure quality consistency for 100000pcs laser tube a year.

订制

5、We can customize different laser tube for special application .

PRODUCT DETAIL

Glass to Metal Seals USA IIVI Windows Inside

Germany Schott Discharge Tube

HM Laser Logo

Glass to Metal Seals USA IIVI Mirror Inside

Application field

Sign Making

Shoes Making

Package

Clothing

Wood

Specification

Parameter Description

Model	H1	H2	H4	H6	H8
Length(mm)	1100 ±20	1250 ±20	1400 ±20	1650 ±20	1850 ±20
Dia(mm)	80±2	80±2	80±2	80±2	90±2
Rated Power	75W	90W	110W	130W	150W
Max Power	90W	100W	120W	150W	170W
Catalyst	Y	Y	Y	Y	Y
Working Life (Hours) under Recommended Working Current	15000 Hours /18mA	15000 Hours / 21mA	15000 Hours / 22mA	10000 Hours / 24mA	8000 Hours / 28mA
Warranty	18 Months			12 Months
